| MOQ: | 1 |
| 価格: | USD2000-USD10000/SET |
| 標準梱包: | 通常のフィルムとカートン付き |
| 配達期間: | 預金の15日後 |
| 支払方法: | T/T |
| 供給能力: | 500セット/月 |
High-Efficiency Automated Spindle Coating Line
Redefining Mass Production Painting and Coating Efficiency
In the competitive landscape of industrial manufacturing, throughput and consistency are paramount. The high-density Automated Spindle Coating Line is engineered to deliver flawless, high-volume finishing for small to medium-sized cylindrical or complex parts. Designed to integrate seamlessly with your existing infrastructure, this system is the ultimate solution for mass-producing high-quality coated components.
How the Automated Spindle System Works

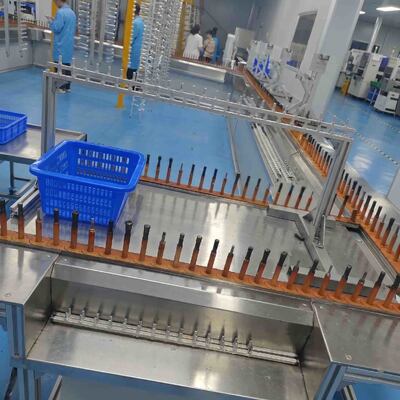

Our automated chain-on-edge (spindle) system utilizes a continuous, multi-tiered conveyor structure. Components are loaded onto specialized vertical spindles (as seen in our high-density array design) that rotate as they pass through the spraying or dipping zones. This 360-degree rotation ensures an even, precise coating application on every single part, eliminating dead angles and reducing material waste.
Key Features & Production Benefits
1.High-Density Batch Processing: The multi-tiered, paralleled track design allows hundreds of components to be processed simultaneously within a highly compact footprint, drastically multiplying your hourly output.
2.Precision 360° Rotation: Spindles automatically rotate components in the active coating zone, guaranteeing uniform film thickness and a flawless cosmetic finish.
3.Seamless Integration: Fully compatible with standard liquid painting, powder coating, or specialized anti-static coating environments.
4.Automated Transport & Curing: Integrated with smooth conveyor systems that transition parts seamlessly from the loading zone, through the spray booth, and into the curing oven without manual intervention.
Durable Anti-Static Design: Built with high-grade stainless steel and specialized tooling to maintain a clean-room level environment, ensuring zero contamination during the coating process.
Technical Specifications
| Parameter | Specification | Unit |
| Equipment Name | High-Density Automated Spindle Coating Line | - |
| Application | Mass production spraying/coating for small/medium parts | - |
| Conveyor Type | Chain-on-Edge / Rotational Spindle System | - |
| Typical Line Speed | 1.0 - 5.0 (Variable Frequency Drive Adjustable) | m/min |
| Component Pitch (Distance) | Customizable (e.g., 50.8 / 101.6) | mm |
| Spindle Rotation Speed | 10 - 150 (Adjustable in Spray Zone) | RPM |
| Structural Material | High-Strength Anodized Aluminum & 316 Stainless Steel | - |
| Coating Methods Supported | Liquid Spray, Powder Coating, Dip Coating | - |
| System Tiers | Multi-level customizable (e.g., 2 to 4 tiers) | Levels |
| Part Loading/Unloading | Manual or Robot-Assisted Auto-loading compatible | - |
| Control System | PLC with Touchscreen HMI | - |
| Max Working Temperature | Up to 250°C (If routed through curing oven) | °C |
| Power Requirements | 3-Phase 380V, 50Hz (Customizable for global markets) | V / Hz |
Ready to Elevate Your Finish Quality and Boost Efficiency?
Contact CoatTech Today for a Customized Automatic Painting Line Quote.
