| MOQ: | 1 |
| 価格: | USD2000-USD10000/SET |
| 標準梱包: | 通常のフィルムとカートン付き |
| 配達期間: | 預金の15日後 |
| 支払方法: | T/T |
| 供給能力: | 500セット/月 |
Smart Automated Powder Coating Line & Industrial Finishing Systems | CoatTech
Discover CoatTech’s fully automated industrial coating line. Featuring high-efficiency cyclone powder recovery, multi-stage pre-treatment, and eco-friendly water curtain spray booths for premium surface finishing.
Product Overview
Achieve flawless surface finishes and unmatched operational efficiency with the CoatTech Intelligent Automated Coating Line. Engineered for high-capacity industrial manufacturing, this turnkey surface finishing system integrates advanced automation, robust pre-treatment chemistry, high-efficiency powder application, and sustainable waste-management technologies. From heavy-duty metal components to intricate parts, our smart coating plant ensures uniform layer deposition, minimal powder waste, and a seamless production flow.
Key Performance Features
1.Advanced Multi-Stage Pre-Treatment Tunnel: Features a robust stainless steel spray tunnel equipped with dense arrays of precision-angled composite nozzles. This ensures thorough chemical cleaning, degreasing, and phosphating, creating the perfect substrate adhesion for subsequent coating layers.

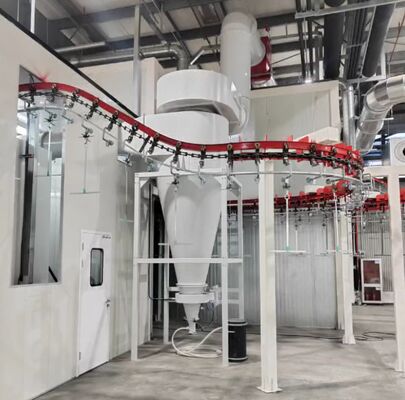

2.High-Efficiency Cyclone Powder Recovery System: Designed for rapid color changes and maximum material utilization. The heavy-duty white cyclone separator extracts oversprayed powder from the air, channeling it back into the fluidizing hopper, significantly lowering operational costs and material waste.
3.Smart Overhead Conveyor Loop: A heavy-duty, synchronized red overhead chain conveyor system automatically routes part hangers through the entire facility. Engineered with complex elevation capabilities, it seamlessly navigates mezzanine levels to optimize floor space.
4.Eco-Friendly Water Curtain Spray Booth: Built entirely from premium industrial stainless steel, the active cascading water-wash curtain captures overspray with maximum efficiency, ensuring a clean working environment and strict environmental compliance.
5.Heavy-Duty Industrial Pumping & Fluid Control: Integrated high-power circulation pumps and centralized automation modules monitor and maintain pressure, fluid balance, and temperature across the entire pre-treatment line.
Technical Specifications
| Parameter | Specification |
| System Type | Fully Automated Continuous Overhead Conveyor Coating Line |
| Applicable Coatings | Thermosetting Powder Paint / Liquid Spray Coatings |
| Conveyor Loading Capacity | Up to 150 kg per hanger (Customizable for heavy duty) |
| Conveyor Speed Range | 1.0 – 5.0 m/min (Variable Frequency Drive control) |
| Pre-Treatment Sections | Multi-stage (Degreasing, Rinsing, Surface Conditioning, Phosphating) |
| Booth Material | SUS304 / SUS316 Heavy-Duty Stainless Steel |
| Powder Recovery Efficiency | ≥ 98% (High-efficiency cyclone + secondary filter system) |
| Control System | Centralized Smart PLC Touchscreen Panel with Remote Diagnostics |
| Heating Source Options | Natural Gas / LPG / Electricity / Diesel |
| Safety Compliance | CE Certified, ATEX/EX Explosion-proof standards for booth areas |
Frequently Asked Questions
Q1: What makes the CoatTech automated coating line ideal for high-capacity industrial manufacturing?
A: The system is built on a highly synchronous, heavy-duty overhead conveyor layout that connects the pre-treatment tunnel, the automated spray booth, and the curing oven into a singular continuous loop. By eliminating manual handling between stages, the plant drastically reduces labor dependencies, maximizes throughput, and guarantees absolute batch-to-batch consistency in surface coating quality.
Q2: How does the cyclone powder recovery system optimize material efficiency?
A: Our smart coating lines utilize an advanced aerodynamic cyclone separator. During operation, air containing oversprayed powder enters the cyclone at a high velocity, forcing the heavier powder particles to separate from the airflow and collect at the bottom hopper for immediate re-use. This yields a material recovery rate of up to 98%, making it highly effective for operations requiring frequent or fast color changes without cross-contamination.
Q3: What are the environmental and safety advantages of the water curtain spray booth?
A: The water curtain spray booth utilizes a continuous, cascading sheet of water to trap particulate overspray before it can escape into the atmosphere or ventilation ducts. This setup minimizes air pollution, protects operator health, reduces fire hazards in compliance with international industrial safety regulations, and maintains stable airflow within the spray zone for uniform coating application.
Ready to upgrade your industrial finishing capabilities?
Contact our engineering team to design a customized surface finishing solution that meets your precise operational requirements and layout.
