CoatTech Industrial Spray Booth with High-Speed PVC Roll-Up Door
Optimize your industrial coating line with the CoatTech Spray Booth featuring a high-speed PVC door. Engineered for maximum workflow efficiency, strict dust control, and superior ventilation compliance.
Streamline Your Coating Operations
The CoatTech Industrial Spray Booth with a High-Speed PVC Roll-Up Door is engineered for high-volume, continuous-flow manufacturing environments. Designed to eliminate workflow bottlenecks, this advanced surface preparation and coating station integrates rapid access technology with heavy-duty environmental controls, ensuring a flawless finish while maintaining stringent safety and eco-compliance standards.
Key Advantages
1.Maximum Throughput with High-Speed Access: The industrial-grade blue PVC roll-up door allows for rapid entry and exit of large workpieces, forklifts, or rail-guided carts. The integrated full-width transparent window ensures safe monitoring of the operation without interrupting the controlled environment.
2.Superior Dust & Contamination Control: The fast-acting door minimizes the time the booth is exposed to the external shop floor, effectively sealing out dust and airborne contaminants to guarantee high-quality paint finishes.

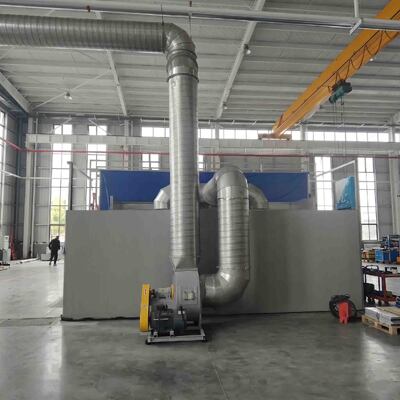

3.Heavy-Duty Ventilation & VOC Extraction: Powered by a robust external centrifugal blower and connected via high-capacity galvanized spiral ducting, the system ensures optimal airflow. It rapidly extracts overspray and volatile organic compounds (VOCs), maintaining a safe micro-negative pressure environment.
4.Shadow-Free Illumination: Angled, high-luminance explosion-proof LED lighting arrays run along the ceiling, providing a shadow-free, high-color-rendering environment critical for precise application and quality inspection.
5.Modular & Durable Construction: Built with premium insulated composite panels (rock wool or EPS), the booth offers excellent thermal retention and structural integrity, lowering long-term operational energy costs.
Technical Specifications
| Parameter | Specification |
| Brand | CoatTech |
| Equipment Type | Industrial Spray Booth / Prep Station |
| Main Access Door | High-Speed Roll-up PVC Door |
| Door Material | Heavy-duty industrial PVC (Blue) with transparent visual window |
| Wall Construction | Modular insulated color steel sandwich panels (Rock Wool / EPS) |
| Ventilation System | External heavy-duty centrifugal blower (Belt-driven) |
| Ducting Type | Large-diameter galvanized spiral ducting |
| Lighting System | Angled roof-mounted explosion-proof LED / Fluorescent fixtures |
| Filtration Design | Rear-wall exhaust with multi-stage filtration (Dry filter or Water Wash compatible) |
| Voltage/Frequency | Customized to destination country standards (e.g., 380V/50Hz, 415V/50Hz) |
| Dimensions | Custom-sized based on client workpiece requirements |
Ideal Applications
Heavy Machinery & Equipment Manufacturing
Automotive Parts & Body Panels
Industrial Metal Fabrication
Large-scale Woodworking & Furniture Production
Aerospace & Marine Component Coating
Frequently Asked Questions (FAQ)
Q: Can the booth dimensions be customized for oversized industrial equipment?
A: Yes. CoatTech designs and manufactures modular spray booths tailored to your specific spatial constraints and maximum workpiece dimensions.
Q: How durable is the PVC roll-up door in a heavy industrial environment?
A: The door is constructed from reinforced, tear-resistant industrial PVC designed for thousands of rapid open/close cycles. It is highly resistant to standard industrial solvents and mechanical wear.
Q: Does the ventilation system meet international environmental standards?
A: Absolutely. Our heavy-duty centrifugal blowers and integrated filtration systems are designed to capture overspray and effectively manage VOC emissions, ensuring compliance with strict environmental regulations across various global regions, including the Middle East, Southeast Asia, and Europe.
Q: Is the installation process complicated?
A: The booth features a modular panel design and standardized spiral ducting connections. This allows for straightforward, rapid assembly on-site, minimizing downtime in your production schedule. Complete installation drawings and remote technical support are provided.
Why Choose Us
Unlike standard suppliers, we provide:
Full system integration (booth + airflow + automation)
Turnkey coating solutions
Energy-saving engineering design
Global project experience (automotive, heavy industry, manufacturing)
Call to Action
Contact us now for a customized spray booth solution
Get engineering drawing & quotation within 24 hours
