| 起源の場所: | 中国 |
|---|---|
| ブランド名: | CoatTech |
| 証明: | CE |
| モデル番号: | CT-Prep A18 |
| 最小注文数量: | 1 |
| 価格: | USD1000-USD6000/SET |
| パッケージの詳細: | 通常のフィルムとカートン付き |
| 受渡し時間: | 預金の15日後 |
| 支払条件: | T/T |
| 供給の能力: | 30セット/月 |
| 名前: | CT-Prep A18 | エネルギーの使用：: | ディーゼル、ガス、蒸気、電気、またはその他のオプション |
|---|---|---|---|
| メインドア：: | 折りたたみスタイルまたは電動ローリングスタイル | モーター：: | 中国のブランドまたはインポートブランド |
| 制御システム：: | スイッチスタイルまたはPLCタッチスクリーンコントロール | 壁：: | メタルシェルド、EPS、オプション用のPUのロックウール |
| 色：: | 白またはその他のオプション | 応用：: | バス/トラックまたはその他の金属製品 |
| エネルギー源：: | 水、電気、ガス | コーティング: | 10-50um |
| 二面性：: | 必要に応じて | ||
| ハイライト: | Drive-through linear sanding station,High-volume workflow sanding station,Front rear access sanding curtains |
||

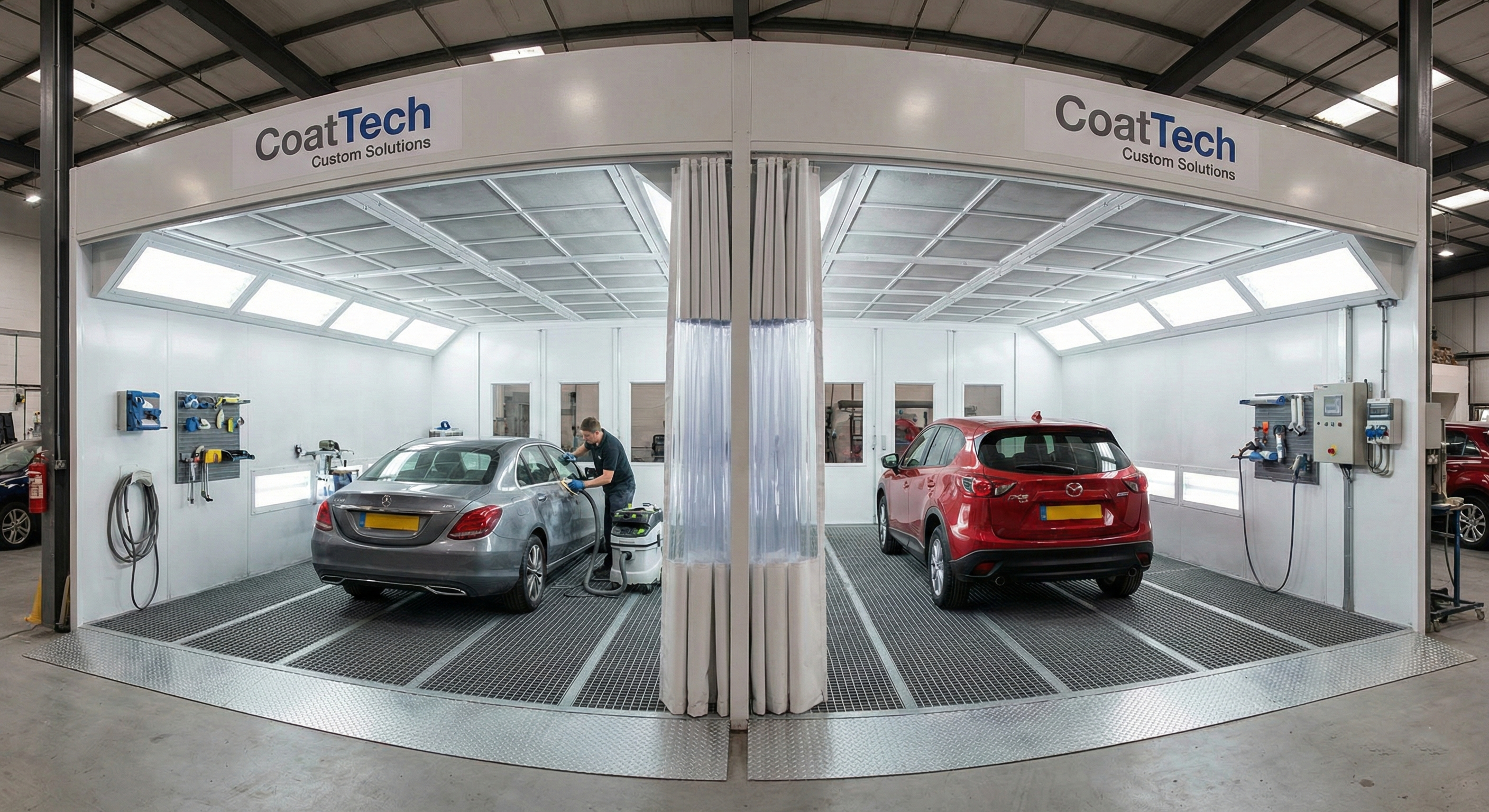

CoatTech Drive-Through Linear Sanding Station with Front and Rear Access Curtains for High-Volume Workflow
Introduction:
CoatTech Drive-Through Linear Sanding Station with Front and Rear Access Curtains for High-Volume Workflow Introduction: Designed for assembly lines or high-traffic shops, this unit improves efficiency by allowing vehicles to flow linearly through the workspace.
Technical Specification Sheet
| Model | Inner Size (mm) | Outer Size (mm) | Total Airflow | Heating | Total Power | Application |
| CT-Prep A8 | 7000×4000×2700 | 8500×5500×3400 | 18,000 m³/h | None | 13 kW | Assembly Line |
| System | Component | Description | Optional |
| Structure | Access | PVC Curtains on Front and Rear (Drive-Through) | Motorized Curtains |
| Extraction | Side-Draft Columns (Left & Right Walls) | - | |
| Air System | Fan Position | Roof Mounted or Side Mounted | - |
| Basement | Type | Optional (Flat Floor or Raised) | - |
| Lighting | Layout | Longitudinal Ceiling Lights | - |

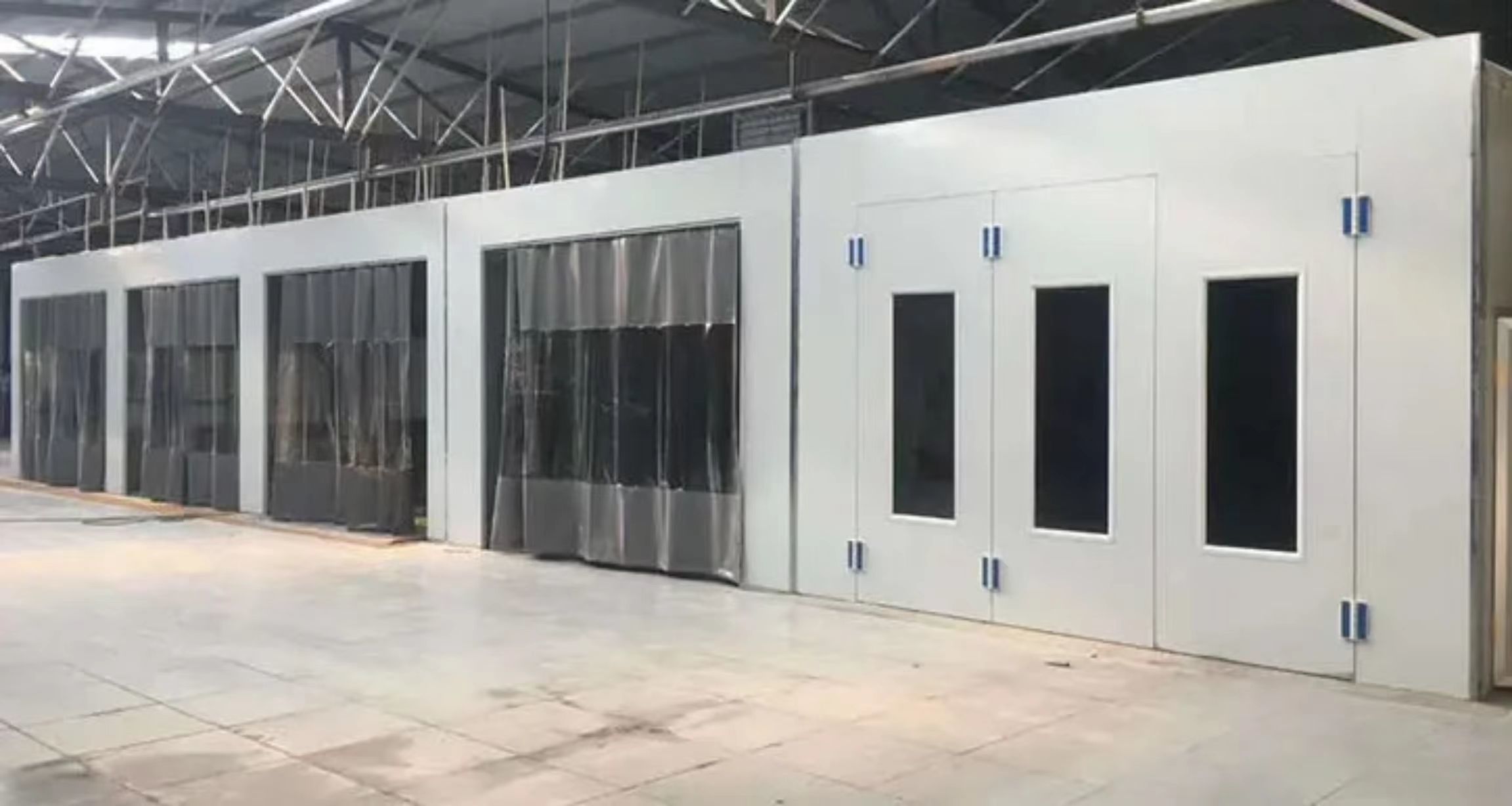

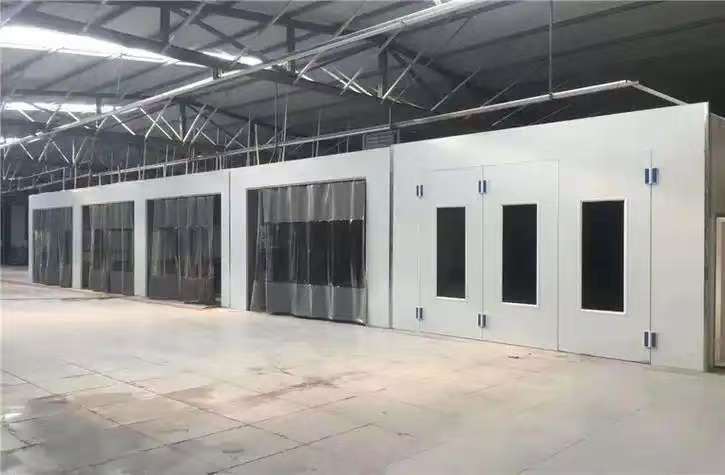

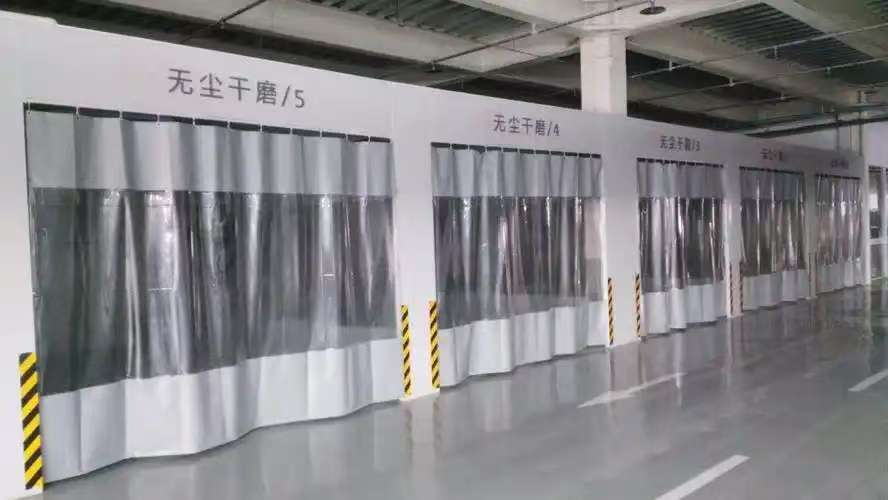

PVC Curtain Enclosure Unlike a fixed booth, the Prep Station uses sliding PVC curtains.
Convenience: Easily slide curtains open to move cars in and out quickly.
Visibility: Transparent windows allow the manager to monitor work progress.
Durability: Resistant to solvents and wear.
Energy Saving Strategy Don't turn on your 15kW Paint Booth just to spray a bumper with primer. Use the Prep Station (5.5kW) instead. It creates a cleaner environment than the open shop floor but costs a fraction of the price to operate.
Q: Can I spray the final topcoat (Color/Clear) in this Prep Station? A: Technically yes, but we do not recommend it for high-quality finishes. The Prep Station is not a sealed environment like a Spray Booth, so there is a higher risk of dust. It is best used for Primer and Putty.
Q: Does it need a metal base (basement)? A: No. The most popular model is the "Rear Draft" version. It sits on your existing flat concrete floor and sucks air out through a filter box on the back wall. This saves money on ramps and steel bases.
Q: Can you make a station for 3 cars at once? A: Yes, we can connect multiple units together (side-by-side) to create a multi-bay sanding line.
Q: Is the fan unit noisy? A: We use a dynamic balanced centrifugal fan with a belt drive, which keeps noise levels below 75dB.
