| 起源の場所: | 中国 |
|---|---|
| ブランド名: | CoatTech |
| 証明: | CE |
| モデル番号: | オーブン-800 |
| 最小注文数量: | 1 |
| 価格: | USD2000-USD10000/SET |
| パッケージの詳細: | 通常のフィルムとカートン付き |
| 受渡し時間: | 預金の15日後 |
| 支払条件: | T/T、MoneyGram、Western Union、D/A |
| 供給の能力: | 50set/month |
| 名前: | オーブン | 電源: | 380V/50Hz/3phまたはその他のオプション |
|---|---|---|---|
| メインドア: | 直接オープニングタイプ | モーター: | 中国のブランドまたはインポートブランド |
| 制御システム: | スイッチスタイルまたはPLCタッチスクリーンコントロール | 壁: | メタルシェルド、EPS、オプション用のPUのロックウール |
| 色: | 白またはその他のオプション | アプリケーション: | 塗料乾燥 |
| エネルギー源: | 電気 | コーティング: | 10-50um |
| 二量体: | カスタマイズ可能 | ||
| ハイライト: | industrial hot blast furnace,electric constant temperature drying furnace,large industrial dehydrator furnace |
||

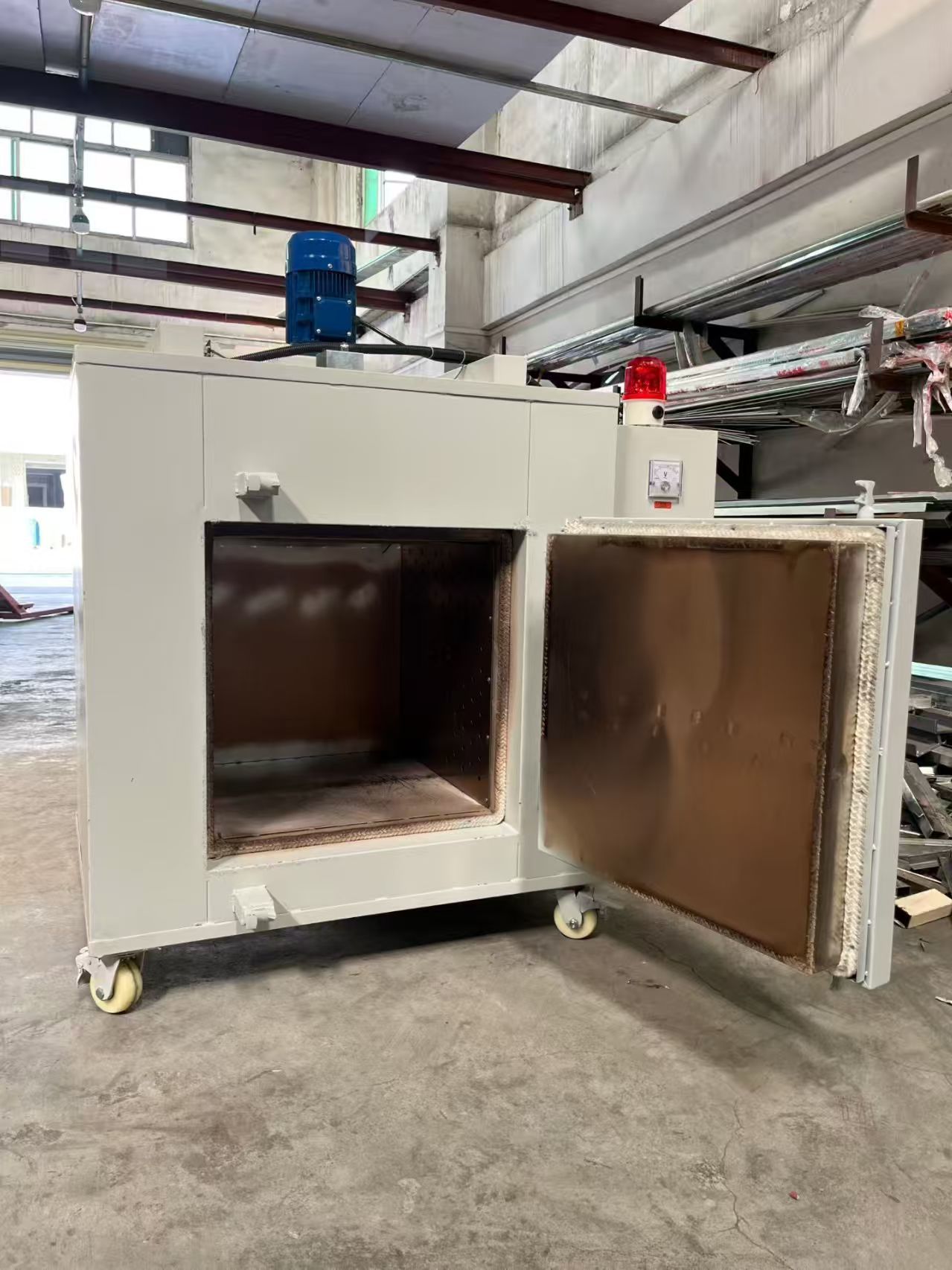

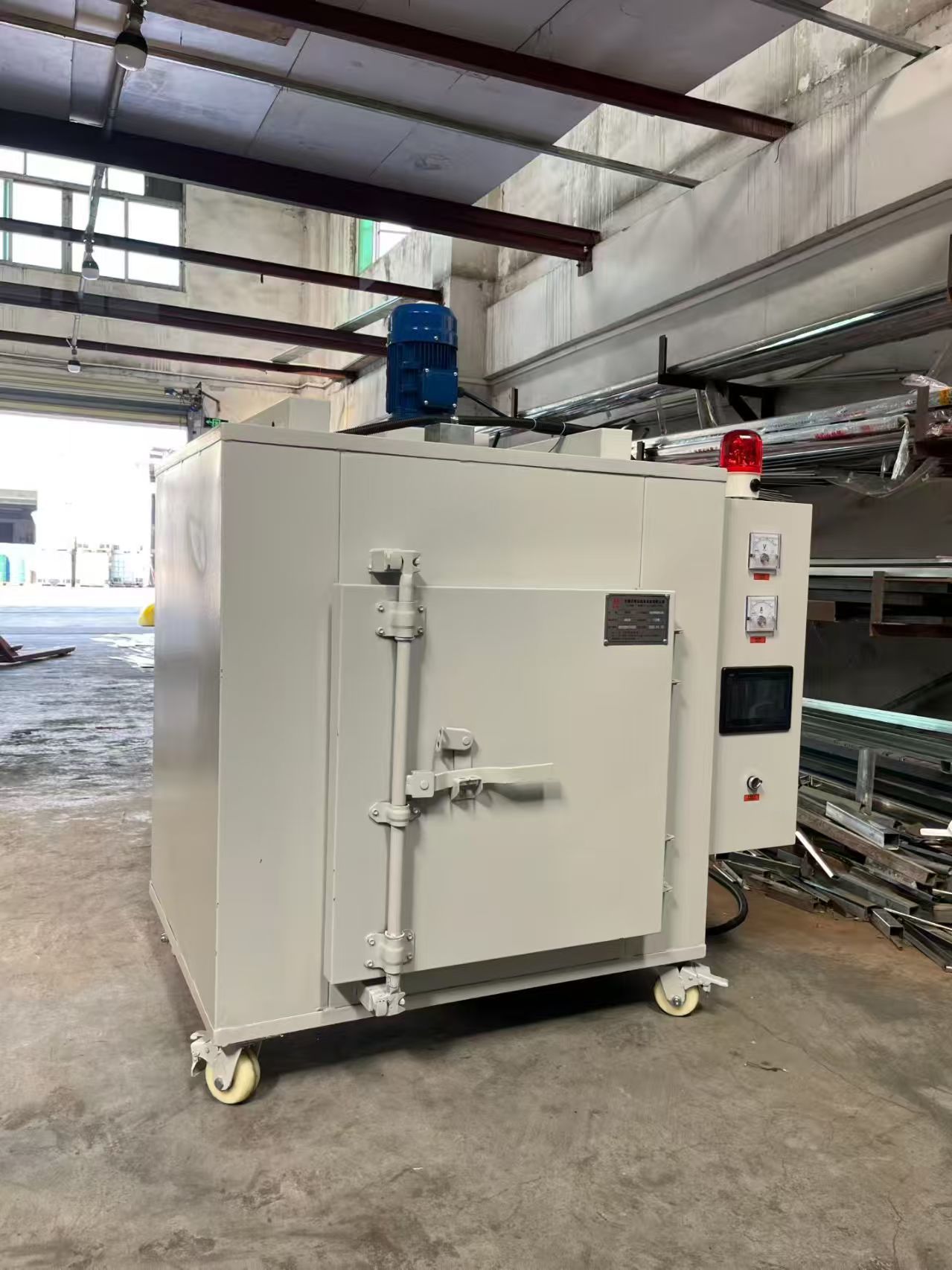

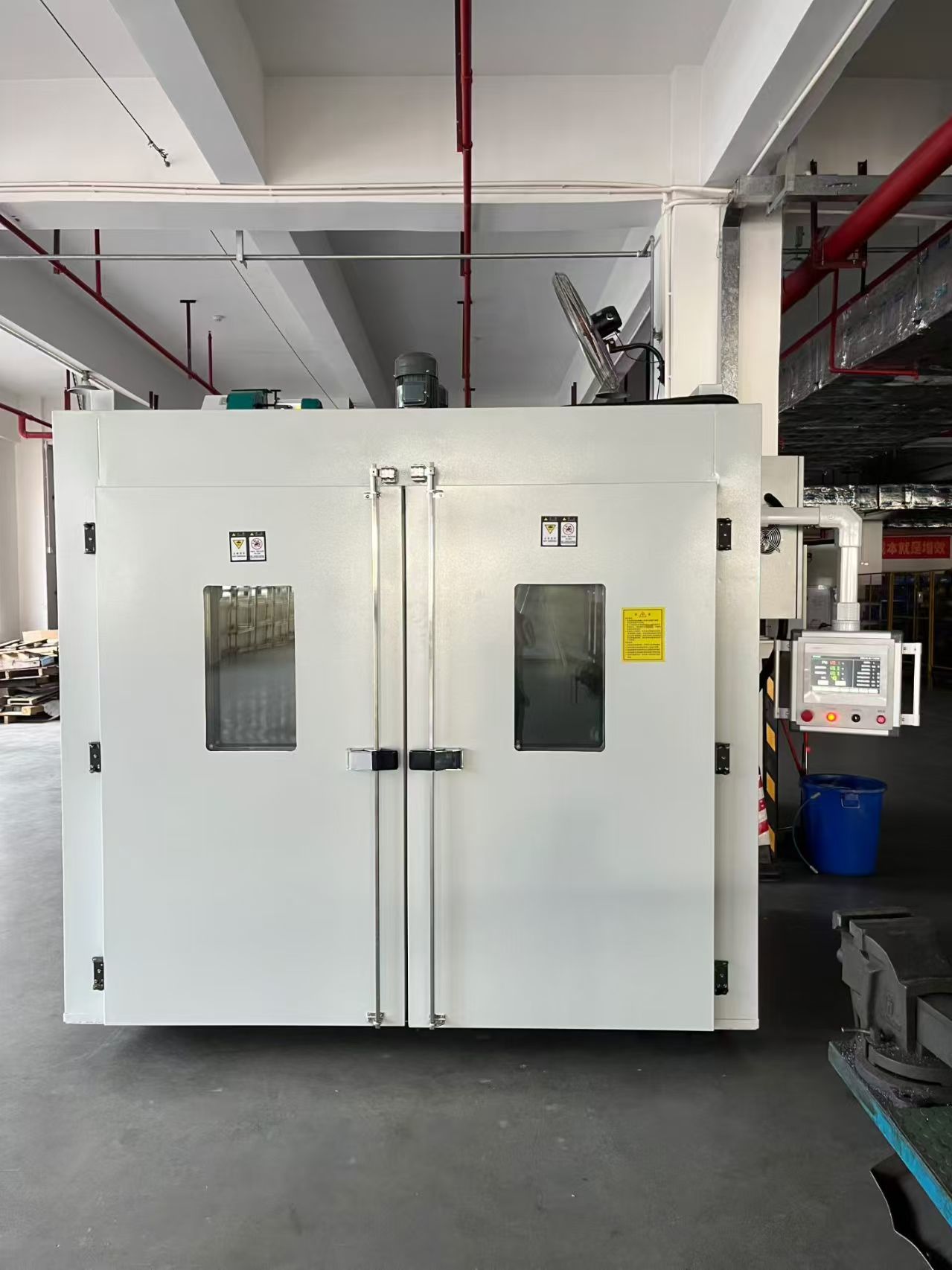

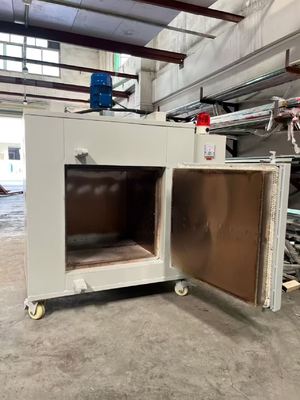

Industrial large hot blast furnace electric blast constant temperature drying furnace dehydrator industrial furnace
Specification
| Model No | Internal size H×W×D(mm) | Temperature range | Power | Voltage |
| OVEN-900 | 900×600×500 | RT~200℃ | 7.5KW | Customizable |
| OVEN-600 | 1000×800×600 | RT~200℃ | 9KW | Customizable |
| OVEN-500 | 500×600×500 | RT~300℃ | 6KW | Customizable |
| OVEN-800 | 500×800×500 | RT~500℃ | 13KW | Customizable |
| OVEN-1200 | 1200×800×800 | RT~350℃ | 15KW | Customizable |
| OVEN-1000 | 1500×1000×800 | RT~200℃ | 14KW | Customizable |
| OVEN-1500 | 1500×1200×1200 | RT~200℃ | 17KW | Customizable |
| OVEN-1550 | 1550×1200×850 | RT~200℃ | 15KW | Customizable |
| OVEN-1800 | 1550×1800×1200 | RT~200℃ | 21KW | Customizable |
The baking system functions through a controlled thermal process:
Heat Generation & Air Circulation
The burner activates to produce intense fluorescent heat via a thermal energy converter.
Filtered external air is mixed with the heated air for energy exchange.
Air Distribution & Filtration
The heated air is delivered to the top of the baking chamber.
It undergoes secondary filtration before being distributed throughout the chamber.
Temperature Regulation & Control
Upon reaching the preset temperature, the burner deactivates.
The fan continues to operate for an additional 15 minutes to stabilize conditions.
The system automatically reactivates the burner and fan if the temperature drops below the set threshold.
Process Completion
The system shuts down automatically after the set baking duration.
This finalizes the paint finishing cycle.
System Benefits
Ensures precise temperature control and efficient heat distribution.
Optimizes the baking process for uniform, high-quality results.
This advanced baking system integrates multiple innovative features for optimal performance: equipped with double over-temperature protection for enhanced safety, it ensures uniform heating through internal hot air circulation while achieving fast and precise temperature control. The system employs cutting-edge domestic/international insulation, heat break, and sealing technologies to maximize energy efficiency. With a low exterior shell temperature that minimally impacts the surrounding environment, it offers customizable heating and airflow settings tailored to product requirements. Combining rapid operation with exceptional heat retention, this energy-saving solution delivers consistent results with reduced environmental impact.
Key Features Highlighted in the Intro:
This product significantly accelerates paint drying, streamlining your workflow immediately after spraying. It simultaneously eliminates imperfections to guarantee professional-grade results, making it ideal for versatile use in both industrial and workshop settings.
